Foundation Equipment

piling carousel.jpeg

The Foundation of Your Success

LiuGong is a world leader in the design and manufacture of foundation equipment. With a strong reputation of quality and reliability, that is backed by GANZ International service commitment, you can be confident you have made the right choice investing in LiuGong Foundation Equipment

Our Range of LiuGong Foundation Equipment

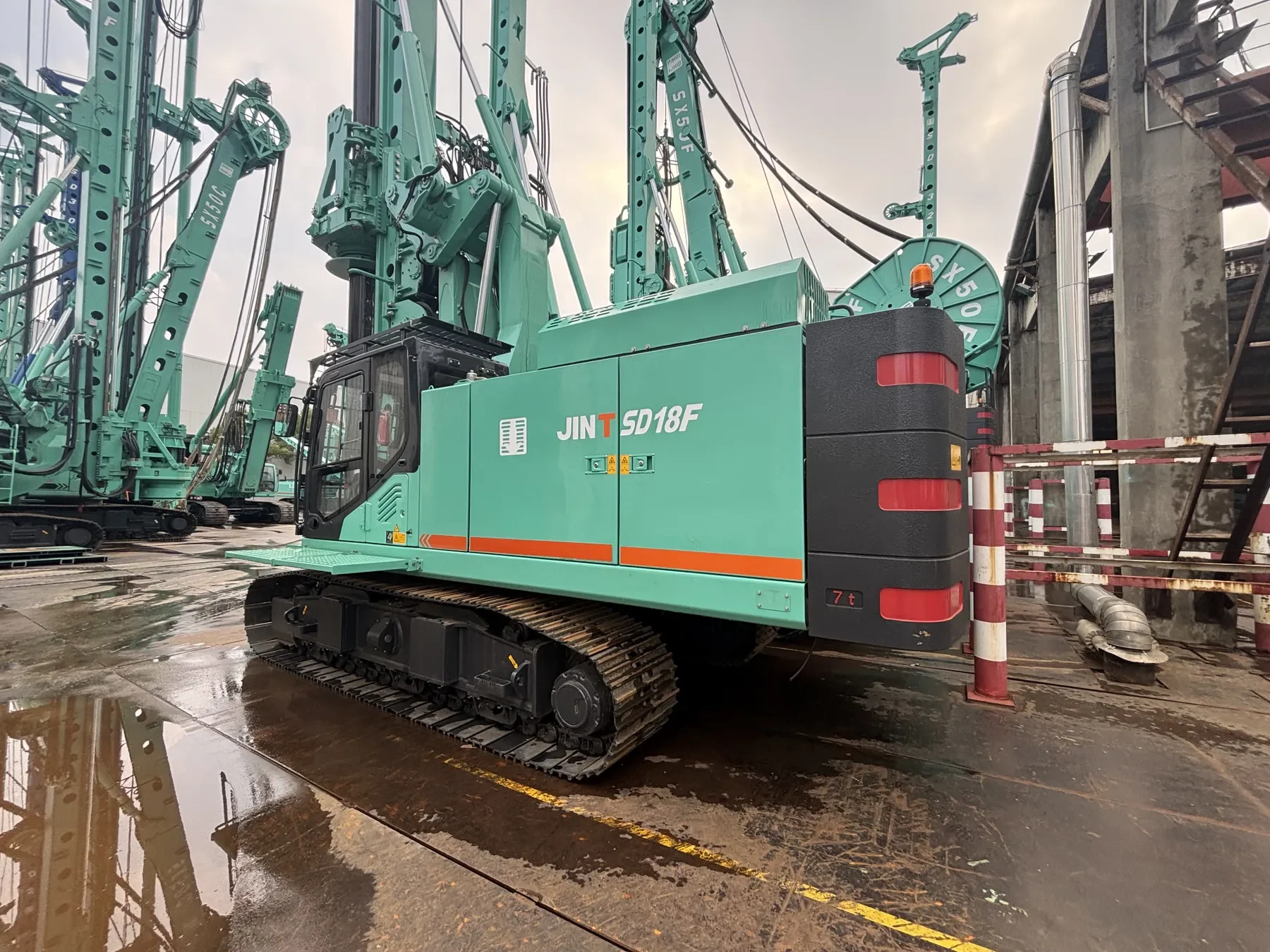

  • SD 18 AW Crowd Winch piling rig

    LiuGong SD18 AW (62T)

    62t LiuGong Piling Rig Kelly and CFA Version available.

    Carries Kelly in Transport mode.

    180 Knm of rotary torque with CFA option.

    Download Brochure
  • Construction site with large drilling machine and workers wearing helmets.

    LiuGong SD 22 AW Crowd winch Kelly and CFA

    68t Crowd cylinder drilling Rig with Crowd winch option.

    22Knm of rotary torque.

    Max drilling dia. 1800mm

    Kelly 4 section interlocking 4 × 52m

    Download brochure

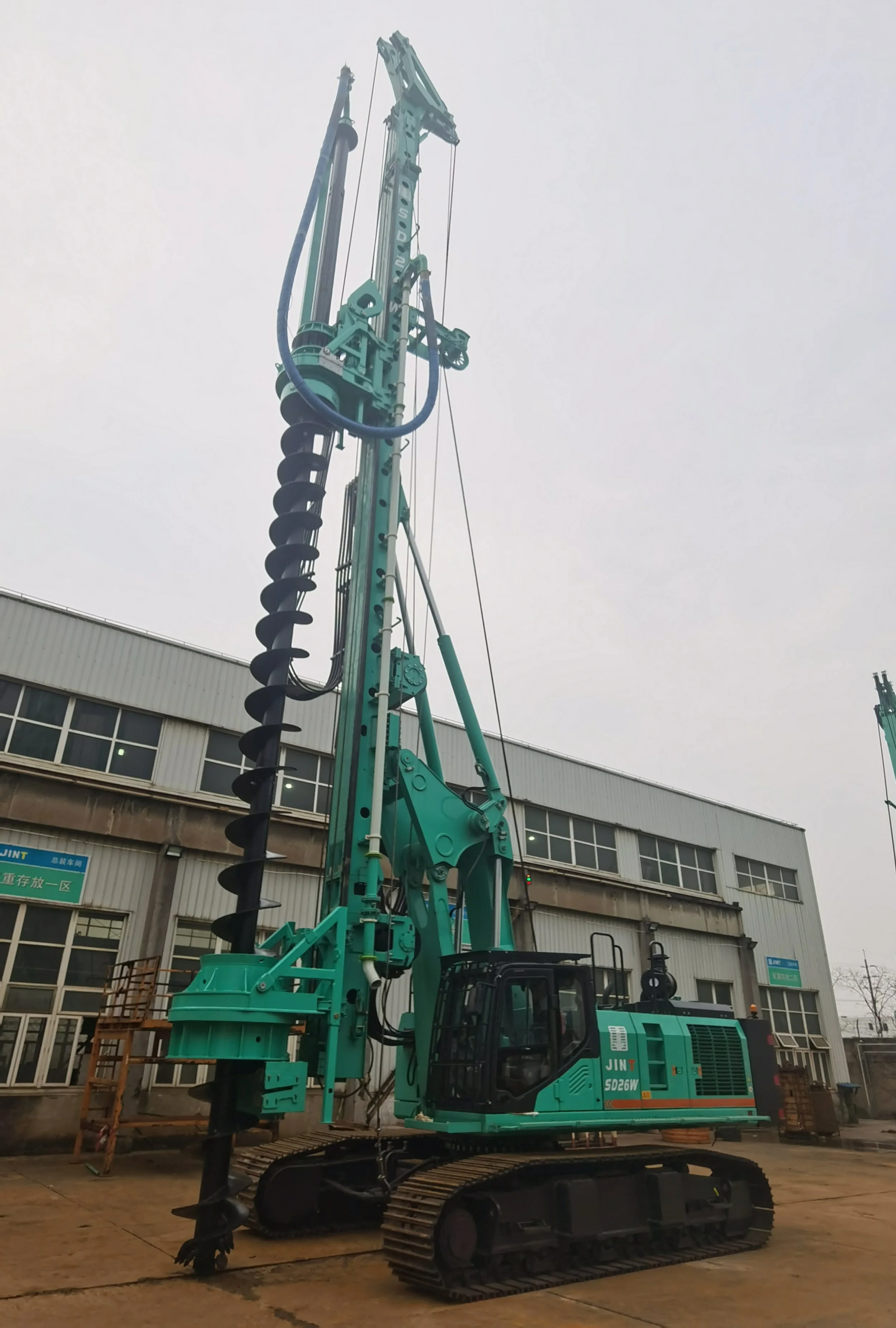

  • A teal-colored drill rig with a large auger attached, positioned outdoors in front of a building with windows, on a cloudy day.

    LiuGong SD26W (90T)

    90t Kelly & CFA Crowd Winch or Crowd Cylinder

    Engine: Cummins QSL9 T3

    Rated Power: 272kW@2100rpm

    Rotary Head: 440mm Diameter with 260kN Torque

    Main Winch: 32mm Rope with 270kN Single Line Pull

    Aux Winch: 20mm Rope with 110kN Single Line Pull

    Download Brochure
  • A teal-colored pile driver construction machine with a tall, vertical arm; red and blue horizontal elements projecting from the arm.

    LiuGong SD30E (100T)

    100t Kelly & CFA Crowd Winch or Crowd Cylinder

    Engine: LJ01B Tier 3

    Rated Power: 299kW@1900rpm

    Rotary Head: 440mm Diameter with 300kN Torque

    Main Winch: 36mm Rope with 330kN Single Line Pull

    Aux Winch: 18mm Rope with 75kN Single Line Pull

    Download Brochure
  • A large, teal-colored construction drill rig with a tall, narrow boom and tracked base.

    LiuGong SH32 (86T)

    86t Kelly & CFA Crowd Winch or Crowd Cylinder

    Engine: Cummins QSM11 T3

    Rated Power: 299kW@1900rpm

    Rotary Head: 440mm Diameter with 320kN Torque

    Main Winch: 36mm Rope with 300kN Single Line Pull

    Aux Winch: 18mm Rope with 75kN Single Line Pull

    Download Brochure
  • A large, industrial drilling machine painted in teal, with a tall, extendable arm and tracks for mobility.

    LiuGong SD36A (92T)

    92t Kelly & CFA Crowd Winch or Crowd Cylinder

    Engine: Cummins QSM11 T3

    Rated Power: 299kW@1900rpm

    Rotary Head: 440mm Diameter with 360kN Torque

    Main Winch: 36mm Rope with 360kN Single Line Pull

    Aux Winch: 18mm Rope with 75kN Single Line Pull

    Download Brochure
  • A large green drilling machine with tracks, tall vertical drill arm, and various mechanical components used for construction or excavation.

    LiuGong SH39 (115T)

    115t Kelly & CFA Crowd Winch or Crowd Cylinder

    Engine: Cummins QSM11 T3

    Rated Power: 299kW@1900rpm

    Rotary Head: 440mm Diameter with 390kN Torque

    Main Winch: 40mm Rope with 450kN Single Line Pull

    Aux Winch: 18mm Rope with 75kN Single Line Pull

    Download Brochure
  • A large green construction crane with a long vertical boom and an undercarriage with tracks, used for heavy lifting on construction sites.

    LiuGong SD40W (132T)

    132t Kelly & CFA Crowd Winch or Crowd Cylinder

    Engine: JS90 T3

    Rated Power: 336kW@1800rpm

    Rotary Head: 440mm Diameter with 400kN Torque

    Main Winch: 40mm Rope with 420kN Single Line Pull

    Aux Winch: 18mm Rope with 75kN Single Line Pull

    Download Brochure
  • A large green construction crane with a long boom, on tracks, isolated on a transparent background.

    LiuGong SH46A (140T)

    140t Kelly & CFA Crowd Winch or Crowd Cylinder

    Engine: Cummins QSX15 T4

    Rated Power: 380kW@1800rpm

    Rotary Head: 440mm Diameter with 460kN Torque

    Main Winch: 40mm Rope with 500kN Single Line Pull

    Aux Winch: 18mm Rope with 110kN Single Line Pull

    Download Brochure
  • A large, teal-colored construction crane with a long boom and hydraulic system, mounted on a tracked base.

    LiuGong SG50A (72T)

    72t Vertical Grab

    Engine: Cummins QSM11 T3

    Rated Power: 266kW@1900rpm

    Max Extraction Force: 500kN

    Max Wall Depth: 75m

    Single Line Pull: 2 x 250kN

    Download Brochure
  • A large teal construction excavator with a long arm and a bucket attachment.

    LiuGong SG70D (95T)

    95t Vertical Grab

    Engine: Cummins QSM11 T3

    Rated Power: 300kW@1900rpm

    Max Extraction Force: 700kN

    Max Wall Depth: 80m

    Single Line Pull: 2 x 350kN

    Download Brochure

LiuGong Foundation Machinery

Introducing the LiuGong Jintai Range of Foundation and Piling Machinery – where innovation meets reliability in the world of construction. LiuGong, a renowned global leader in heavy machinery, proudly presents the Jintai series, designed to redefine efficiency and precision in foundation and piling operations.

The LiuGong Jintai range boasts state-of-the-art technology, cutting-edge engineering, and a commitment to excellence, making it the go-to choice for construction professionals worldwide. These robust machines are meticulously crafted to tackle the toughest challenges in foundation work, ensuring stability and durability in every project.
